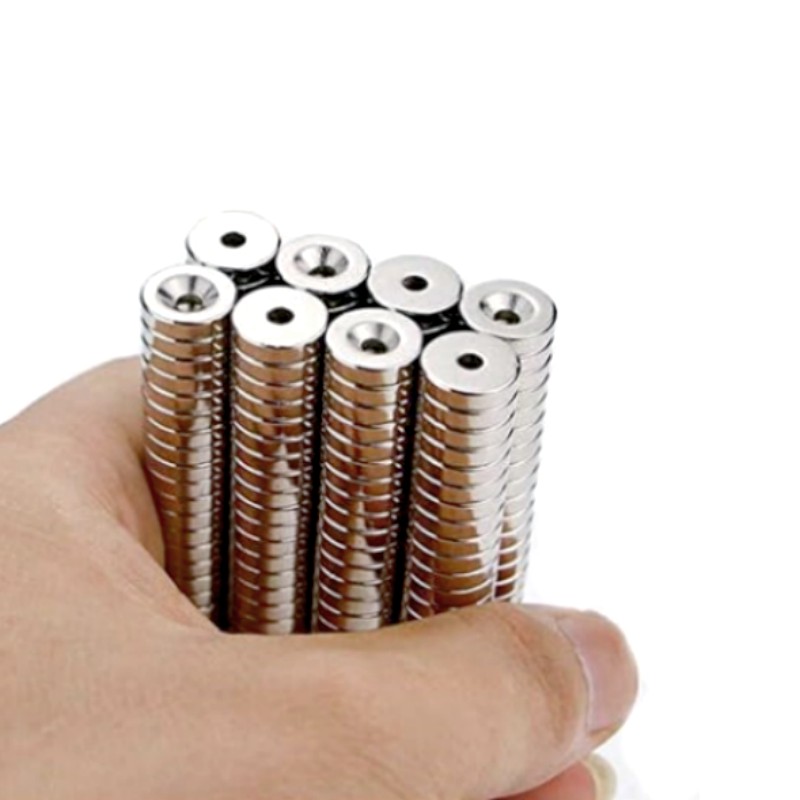

Rare Earth Disc NdFeB Magnets With Countersunk Hole

Countersunk magnets ideal for furniture fixings, hanging artwork and keeping doors and drawers closed.

  • Size :

    0.39'' x 0.12''

  • Color :

    Silver

  • Order(MOQ) :

    100pcs

  • Coating :

    NiCuNi

  • Lead Time :

    3-15days

  • Payment :

    Paypal/TT/Credit Card
Inquire Now

Rare Earth Disc NdFeB Magnets With Countersunk Hole

Product Description

Dimensions: 0.39'' x 0.12''

Screw Size : #3

Tolerances: ±0.004" x ±0.004"

Material: NdFeB

Plating/Coating: Ni-Cu-Ni (Nickel)

Magnetization Direction: Axial (Poles on Flat Ends)



Feature

1.Unique Design: Strong countersunk hole neodymium magnets are made of neodymium iron boron magnetic material. They can attract various materials made of ferromagnetic elements, including nickel, iron, cobalt and their alloy parts.

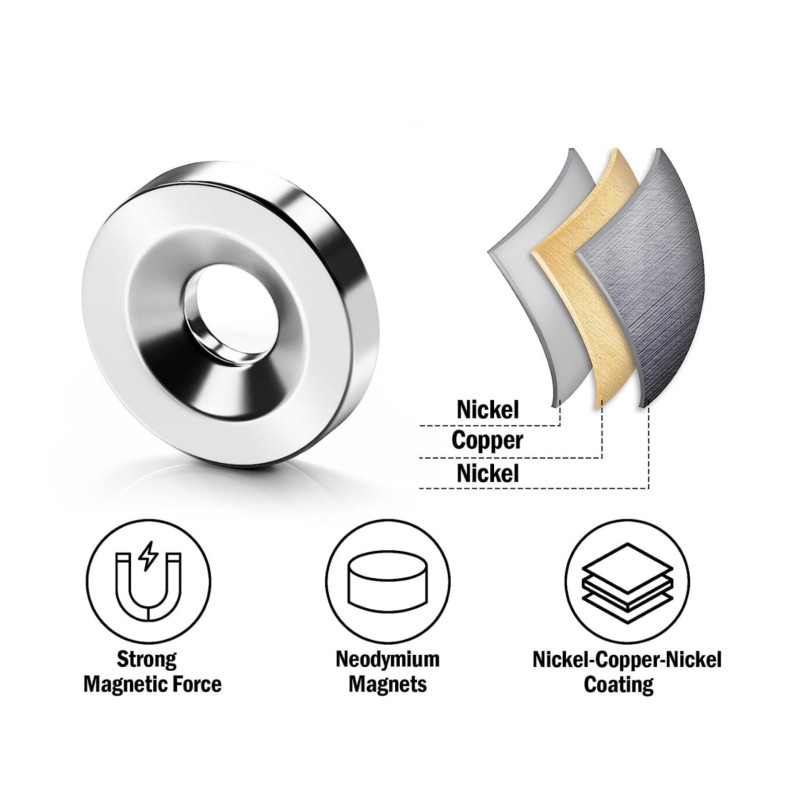

2.High Quality: Neodymium disc countersunk hole magnet coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish which greatly increase the longevity of the Magnets.

3.Versatile Application: These super strong neodymium magnets have a countersunk hole that allows them to be drilled or fit into place. They are incredibly strong and commonly used in DIY, crafts, furniture design, fixings, kitchen design, lock mechanisms and science experiments.

golden supplier countersunk hole neodymium magnet



Specification

Neodymium Br Hcb Hcj (Bh)max Tw
Grade mT kGs kA/m kOe kA/m kOe kJ/m3 MGOe ℃
N35 1170-1220 11.7-12.2 ＞868 ＞10.9 ＞955 ＞12 263-287 33-36 ＜80
N38 1220-1250 12.2-12.5 ＞899 ＞11.3 ＞955 ＞12 287-310 38-39 ＜80
N40 1250-1280 12.5-12.8 ＞907 ＞11.4 ＞955 ＞12 302-326 38-41 ＜80
N42 1280-1320 12.8-13.2 ＞915 ＞11.5 ＞955 ＞12 318-342 40-43 ＜80
N48 1380-1420 13.8-14.2 ＞923 ＞11.6 ＞955 ＞12 366-390 46-49 ＜80
N50 1400-1450 14.0-14.5 ＞796 ＞10 ＞876 ＞11 382-406 48-49 ＜80
N52 1430-1480 14.3-14.8 ＞796 ＞10 ＞876 ＞11 398-422 50-53 ＜80
35M 1170-1220 11.7-12.2 ＞868 ＞10.9 ＞1114 ＞14 263-297 33-36 ＜100
38M 1220-1250 12.2-12.5 ＞899 ＞11.3 ＞1114 ＞14 297-310 36-39 ＜100
40M 1250-1280 12.5-12.8 ＞923 ＞11.6 ＞1114 ＞14 302-326 38-41 ＜100
42M 1280-1320 12.8-13.2 ＞955 ＞12 ＞1114 ＞14 318-342 40-43 ＜100
48M 1360-1430 13.6-14.3 ＞1027 ＞12.9 ＞1114 ＞14 366-390 46-49 ＜100
50M 1400-1450 14.0-14.5 ＞1033 ＞13 ＞1114 ＞14 382-406 48-51 ＜100
33H 1130-1170 11.3-11.7 ＞836 ＞10.5 ＞1353 ＞17 247-271 31-34 ＜120
35H 1170-1220 11.7-12.2 ＞868 ＞10.9 ＞1353 ＞17 263-287 33-36 ＜120
38H 1220-1250 12.2-12.5 ＞899 ＞11.3 ＞1353 ＞17 287-310 36-39 ＜120
40H 1250-1280 12.5-12.8 ＞923 ＞11.6 ＞1353 ＞17 302-326 38-41 ＜120
42H 1280-1320 12.8-13.2 ＞955 ＞12 ＞1353 ＞17 318-342 40-43 ＜120
45H 1300-1360 13-13.6 ＞963 ＞12.1 ＞1353 ＞17 326-358 43-46 ＜120
48H 1370-1430 13.7-14.3 ＞995 ＞12 ＞1353 ＞17 366-390 46-49 ＜120
30SH 1080-1130 10.8-11.3 ＞804 ＞10.1 ＞1592 ＞20 223-247 28-31 ＜150
33SH 1130-1170 10.3-11.7 ＞844 ＞10.6 ＞1592 ＞20 247-271 31-34 ＜150
35SH 1170-1220 11.7-12.2 ＞876 ＞11 ＞1592 ＞20 263-287 33-36 ＜150
38SH 1220-1250 12.2-12.5 ＞907 ＞11.4 ＞1592 ＞20 287-310 36-39 ＜150
40SH 1240-1280 12.5-12.8 ＞939 ＞11.8 ＞1592 ＞20 302-326 36-41 ＜150
42SH 1280-1320 12.8-13.2 ＞987 ＞12.4 ＞1592 ＞20 318-342 40-43 ＜150
45SH 1320-1380 13.2-13.8 ＞1003 ＞12.6 ＞1592 ＞20 342-366 43-46 ＜150
28UH 1020-1080 10.2-10.8 ＞764 ＞9.6 ＞1990 ＞25 207-231 26-29 ＜180
30UH 1080-1130 10.8-11.3 ＞812 ＞10.2 ＞1990 ＞25 223-247 28-31 ＜180
33UH 1130-1170 11.3-11.7 ＞852 ＞10.7 ＞1990 ＞25 247-271 31-36 ＜180
35UH 1170-1220 11.8-12.2 ＞860 ＞10.8 ＞1990 ＞25 263-287 33-36 ＜180
38UH 1220-1250 12.2-12.5 ＞876 ＞11 ＞1990 ＞25 287-310 36-39 ＜180
40UH 1250-1280 12.5-12.8 ＞899 ＞11.3 ＞1990 ＞25 302-326 31-41 ＜180
28EH 1040-1090 10.4-10.9 ＞780 ＞9.8 ＞2388 ＞30 207-231 26-29 ＜200
30EH 1080-1130 10.8-11.3 ＞812 ＞10.2 ＞2388 ＞30 223-247 28-31 ＜200
33EH 1130-1170 11.3-11.7 ＞836 ＞10.5 ＞2388 ＞30 247-271 31-36 ＜200
35EH 1170-1220 11.7-12.2 ＞876 ＞11 ＞2388 ＞30 263-287 33-36 ＜200
38EH 1220-1250 12.2-12.5 ＞899 ＞11.3 ＞2388 ＞30 287-310 36-39 ＜200
28AH 1040-1090 10.4-10.9 ＞787 ＞9.9 ＞2642 ＞33 207-231 26-29 ＜230
30AH 1080-1130 10.8-11.3 ＞819 ＞10.3 ＞2642 ＞33 223-247 28-31 ＜230
38AH 1130-1170 11.3-11.7 ＞843 ＞10.6 ＞2642 ＞33 247-271 31-34 ＜230

Magnetization Direction
hot sale neodymium magnet countersunk

How To Use

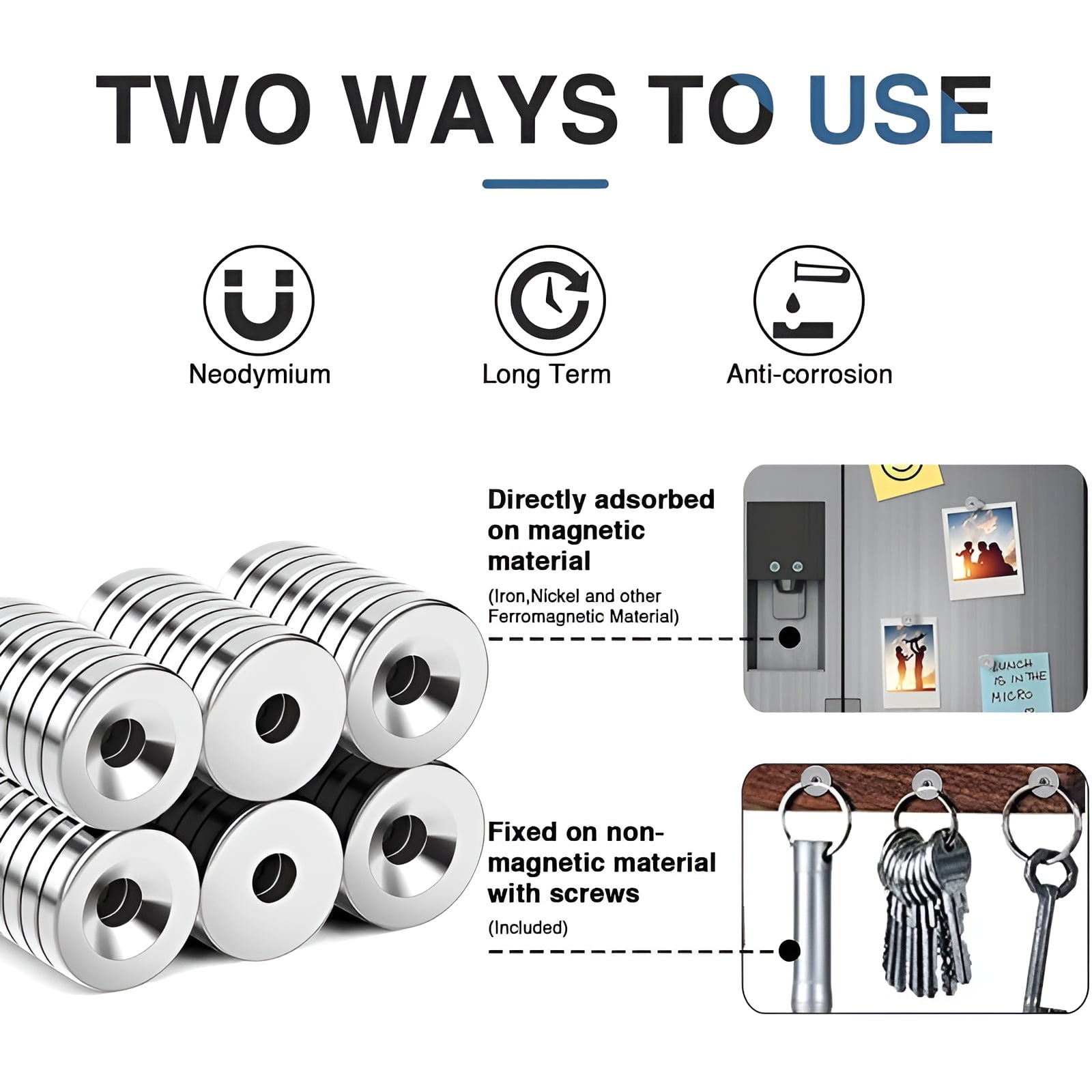

Rare earth magnets with countersunk can directly absorbed on magnetic material and can be fixed on non-magnetic material with screws. Sturdy and reliable. When you separate the magnets, be careful and slide gently.

disc magnet countersunk hole on N or S



Packing&Shipping

Rare Earth Disc NdFeB Magnets With Countersunk Hole

supply china wholesale countersunk round magnet n48
