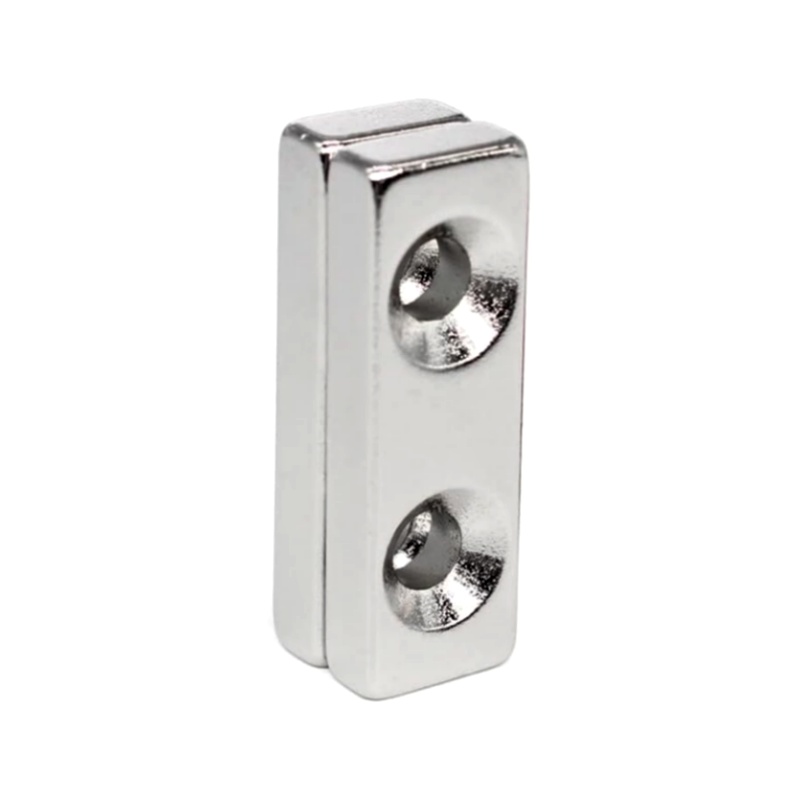

Countersunk magnets are popular neodymium magnets which have countersunk holes to allow the magnet to be easily fastened into place with screw.
Size :
30x10x5mm M4Color :
SilverOrder(MOQ) :
100pcsSample :
FreeLead Time :
10-15daysPayment :
Paypal/TT/Credit CardRare Earth Double Countersunk Block Magnets N52
Product Description
Dimensions: 30x10x5mm
Screw Size: M4
Tolerances: ±0.004" x ±0.004"
Material: NdFeB
Plating/Coating: Ni-Cu-Ni (Nickel)

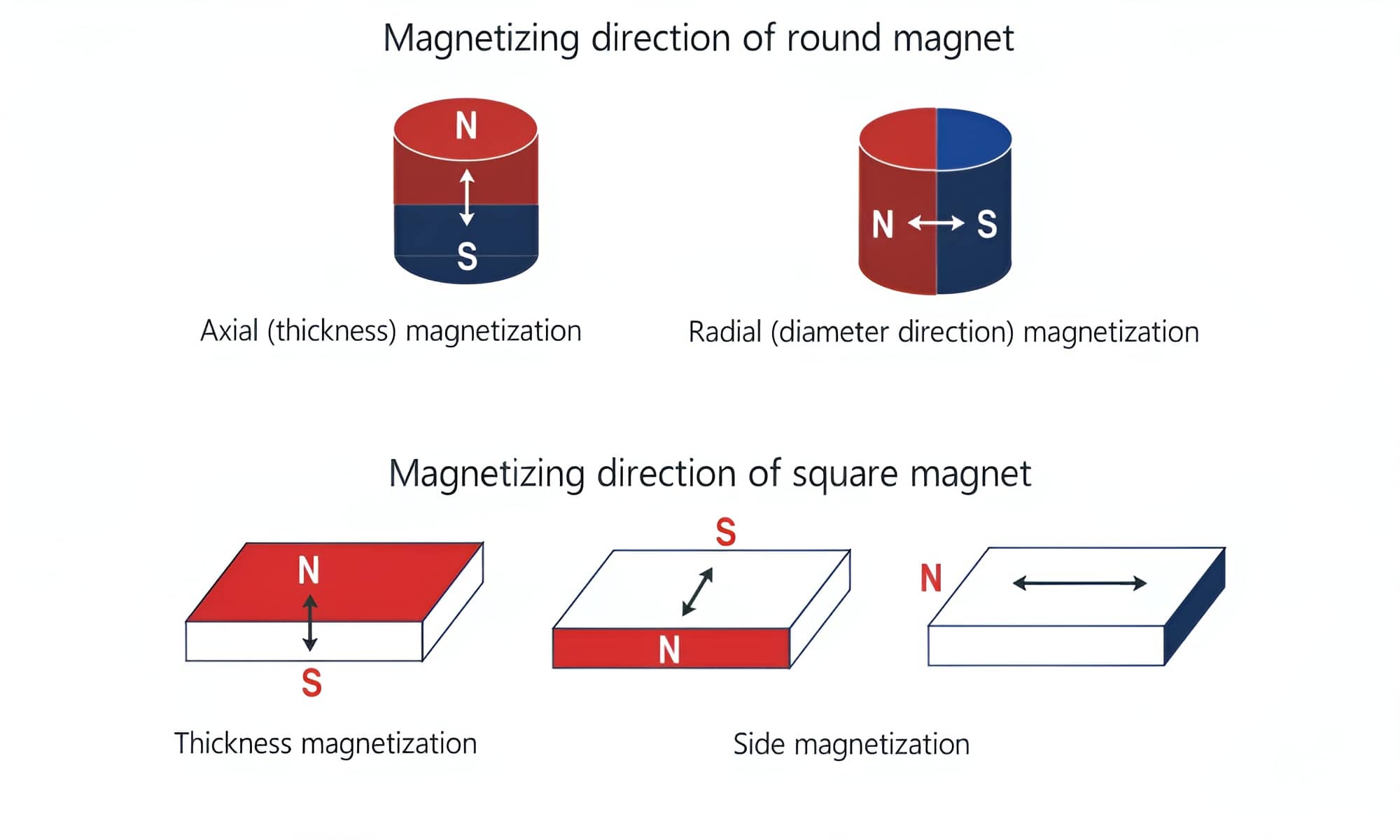

Magnetization Direction: Axial (Poles on Flat Ends)
Warnings
1. Keep away from pacemakers and children
2. If damaged please dispose of completely
Specification
| Neodymium | Br | Hcb | Hcj | (Bh)max | ||||
| Grade | mT | kGs | kA/m | kOe | kA/m | kOe | kJ/m3 | MGOe |
| N35 | 1170-1220 | 11.7-12.2 | ＞868 | ＞10.9 | ＞955 | ＞12 | 263-287 | 33-36 |
| N38 | 1220-1250 | 12.2-12.5 | ＞899 | ＞11.3 | ＞955 | ＞12 | 287-310 | 38-39 |
| N40 | 1250-1280 | 12.5-12.8 | ＞907 | ＞11.4 | ＞955 | ＞12 | 302-326 | 38-41 |
| N42 | 1280-1320 | 12.8-13.2 | ＞915 | ＞11.5 | ＞955 | ＞12 | 318-342 | 40-43 |
| N48 | 1380-1420 | 13.8-14.2 | ＞923 | ＞11.6 | ＞955 | ＞12 | 366-390 | 46-49 |
| N50 | 1400-1450 | 14.0-14.5 | ＞796 | ＞10 | ＞876 | ＞11 | 382-406 | 48-49 |
| N52 | 1430-1480 | 14.3-14.8 | ＞796 | ＞10 | ＞876 | ＞11 | 398-422 | 50-53 |
| 35M | 1170-1220 | 11.7-12.2 | ＞868 | ＞10.9 | ＞1114 | ＞14 | 263-297 | 33-36 |
| 38M | 1220-1250 | 12.2-12.5 | ＞899 | ＞11.3 | ＞1114 | ＞14 | 297-310 | 36-39 |
| 40M | 1250-1280 | 12.5-12.8 | ＞923 | ＞11.6 | ＞1114 | ＞14 | 302-326 | 38-41 |
| 42M | 1280-1320 | 12.8-13.2 | ＞955 | ＞12 | ＞1114 | ＞14 | 318-342 | 40-43 |
| 48M | 1360-1430 | 13.6-14.3 | ＞1027 | ＞12.9 | ＞1114 | ＞14 | 366-390 | 46-49 |
| 50M | 1400-1450 | 14.0-14.5 | ＞1033 | ＞13 | ＞1114 | ＞14 | 382-406 | 48-51 |
| 33H | 1130-1170 | 11.3-11.7 | ＞836 | ＞10.5 | ＞1353 | ＞17 | 247-271 | 31-34 |
| 35H | 1170-1220 | 11.7-12.2 | ＞868 | ＞10.9 | ＞1353 | ＞17 | 263-287 | 33-36 |
| 38H | 1220-1250 | 12.2-12.5 | ＞899 | ＞11.3 | ＞1353 | ＞17 | 287-310 | 36-39 |
| 40H | 1250-1280 | 12.5-12.8 | ＞923 | ＞11.6 | ＞1353 | ＞17 | 302-326 | 38-41 |
| 42H | 1280-1320 | 12.8-13.2 | ＞955 | ＞12 | ＞1353 | ＞17 | 318-342 | 40-43 |
| 45H | 1300-1360 | 13-13.6 | ＞963 | ＞12.1 | ＞1353 | ＞17 | 326-358 | 43-46 |
| 48H | 1370-1430 | 13.7-14.3 | ＞995 | ＞12 | ＞1353 | ＞17 | 366-390 | 46-49 |
| 30SH | 1080-1130 | 10.8-11.3 | ＞804 | ＞10.1 | ＞1592 | ＞20 | 223-247 | 28-31 |
| 33SH | 1130-1170 | 10.3-11.7 | ＞844 | ＞10.6 | ＞1592 | ＞20 | 247-271 | 31-34 |
| 35SH | 1170-1220 | 11.7-12.2 | ＞876 | ＞11 | ＞1592 | ＞20 | 263-287 | 33-36 |
| 38SH | 1220-1250 | 12.2-12.5 | ＞907 | ＞11.4 | ＞1592 | ＞20 | 287-310 | 36-39 |
| 40SH | 1240-1280 | 12.5-12.8 | ＞939 | ＞11.8 | ＞1592 | ＞20 | 302-326 | 36-41 |
| 42SH | 1280-1320 | 12.8-13.2 | ＞987 | ＞12.4 | ＞1592 | ＞20 | 318-342 | 40-43 |
| 45SH | 1320-1380 | 13.2-13.8 | ＞1003 | ＞12.6 | ＞1592 | ＞20 | 342-366 | 43-46 |
| 28UH | 1020-1080 | 10.2-10.8 | ＞764 | ＞9.6 | ＞1990 | ＞25 | 207-231 | 26-29 |
| 30UH | 1080-1130 | 10.8-11.3 | ＞812 | ＞10.2 | ＞1990 | ＞25 | 223-247 | 28-31 |
| 33UH | 1130-1170 | 11.3-11.7 | ＞852 | ＞10.7 | ＞1990 | ＞25 | 247-271 | 31-36 |
| 35UH | 1170-1220 | 11.8-12.2 | ＞860 | ＞10.8 | ＞1990 | ＞25 | 263-287 | 33-36 |
| 38UH | 1220-1250 | 12.2-12.5 | ＞876 | ＞11 | ＞1990 | ＞25 | 287-310 | 36-39 |
| 40UH | 1250-1280 | 12.5-12.8 | ＞899 | ＞11.3 | ＞1990 | ＞25 | 302-326 | 31-41 |
| 28EH | 1040-1090 | 10.4-10.9 | ＞780 | ＞9.8 | ＞2388 | ＞30 | 207-231 | 26-29 |
| 30EH | 1080-1130 | 10.8-11.3 | ＞812 | ＞10.2 | ＞2388 | ＞30 | 223-247 | 28-31 |
| 33EH | 1130-1170 | 11.3-11.7 | ＞836 | ＞10.5 | ＞2388 | ＞30 | 247-271 | 31-36 |
| 35EH | 1170-1220 | 11.7-12.2 | ＞876 | ＞11 | ＞2388 | ＞30 | 263-287 | 33-36 |
| 38EH | 1220-1250 | 12.2-12.5 | ＞899 | ＞11.3 | ＞2388 | ＞30 | 287-310 | 36-39 |
| 28AH | 1040-1090 | 10.4-10.9 | ＞787 | ＞9.9 | ＞2642 | ＞33 | 207-231 | 26-29 |
| 30AH | 1080-1130 | 10.8-11.3 | ＞819 | ＞10.3 | ＞2642 | ＞33 | 223-247 | 28-31 |
| 38AH | 1130-1170 | 11.3-11.7 | ＞843 | ＞10.6 | ＞2642 | ＞33 | 247-271 | 31-34 |
Strong counterbore neodymium magnets have good anti-corrosion properties, are made of high-quality materials, and have stable performance. They are durable and have a long service life.

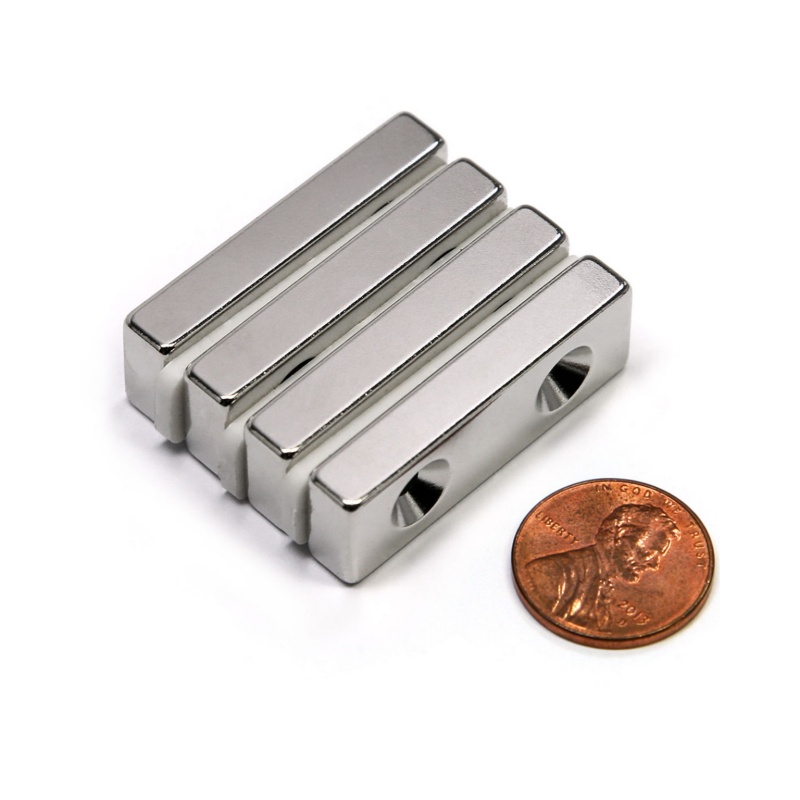

This rectangular neodymium magnet with countersunk is great for holding purposes such as holding objects to magnetic surfaces. The applications range from industrial use to personal projects.
