Neodymium countersunk magnets used to hang fix various metal tools, saving more living space.
Color :
SilverSize :
20x10x4mm M4Order(MOQ) :
100pcsCoating :
NiCuNiLead Time :
3-15daysPayment :
Paypal/TT/Credit CardRare Earth Rectangle Block Magnets With Countersunk Hole
Product Description
Dimensions: 20x10x4mm M4
Tolerances: ±0.004" x ±0.004"
Material: NdFeB
Plating/Coating: Ni-Cu-Ni (Nickel)

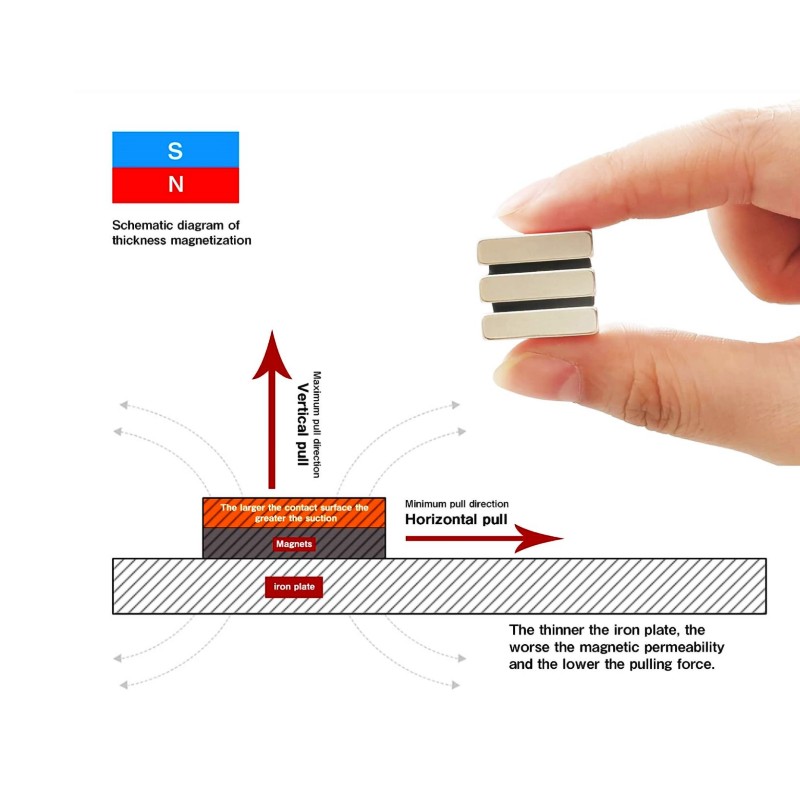

Magnetization Direction: Axial (Poles on Flat Ends)
Max Operating Temp: 176ºF (80ºC)
Specification
| Neodymium | Br | Hcb | Hcj | (Bh)max | ||||
| Grade | mT | kGs | kA/m | kOe | kA/m | kOe | kJ/m3 | MGOe |
| N35 | 1170-1220 | 11.7-12.2 | ＞868 | ＞10.9 | ＞955 | ＞12 | 263-287 | 33-36 |
| N38 | 1220-1250 | 12.2-12.5 | ＞899 | ＞11.3 | ＞955 | ＞12 | 287-310 | 38-39 |
| N40 | 1250-1280 | 12.5-12.8 | ＞907 | ＞11.4 | ＞955 | ＞12 | 302-326 | 38-41 |
| N42 | 1280-1320 | 12.8-13.2 | ＞915 | ＞11.5 | ＞955 | ＞12 | 318-342 | 40-43 |
| N48 | 1380-1420 | 13.8-14.2 | ＞923 | ＞11.6 | ＞955 | ＞12 | 366-390 | 46-49 |
| N50 | 1400-1450 | 14.0-14.5 | ＞796 | ＞10 | ＞876 | ＞11 | 382-406 | 48-49 |
| N52 | 1430-1480 | 14.3-14.8 | ＞796 | ＞10 | ＞876 | ＞11 | 398-422 | 50-53 |
| 35M | 1170-1220 | 11.7-12.2 | ＞868 | ＞10.9 | ＞1114 | ＞14 | 263-297 | 33-36 |
| 38M | 1220-1250 | 12.2-12.5 | ＞899 | ＞11.3 | ＞1114 | ＞14 | 297-310 | 36-39 |
| 40M | 1250-1280 | 12.5-12.8 | ＞923 | ＞11.6 | ＞1114 | ＞14 | 302-326 | 38-41 |
| 42M | 1280-1320 | 12.8-13.2 | ＞955 | ＞12 | ＞1114 | ＞14 | 318-342 | 40-43 |
| 48M | 1360-1430 | 13.6-14.3 | ＞1027 | ＞12.9 | ＞1114 | ＞14 | 366-390 | 46-49 |
| 50M | 1400-1450 | 14.0-14.5 | ＞1033 | ＞13 | ＞1114 | ＞14 | 382-406 | 48-51 |
| 33H | 1130-1170 | 11.3-11.7 | ＞836 | ＞10.5 | ＞1353 | ＞17 | 247-271 | 31-34 |
| 35H | 1170-1220 | 11.7-12.2 | ＞868 | ＞10.9 | ＞1353 | ＞17 | 263-287 | 33-36 |
| 38H | 1220-1250 | 12.2-12.5 | ＞899 | ＞11.3 | ＞1353 | ＞17 | 287-310 | 36-39 |
| 40H | 1250-1280 | 12.5-12.8 | ＞923 | ＞11.6 | ＞1353 | ＞17 | 302-326 | 38-41 |
| 42H | 1280-1320 | 12.8-13.2 | ＞955 | ＞12 | ＞1353 | ＞17 | 318-342 | 40-43 |
| 45H | 1300-1360 | 13-13.6 | ＞963 | ＞12.1 | ＞1353 | ＞17 | 326-358 | 43-46 |
| 48H | 1370-1430 | 13.7-14.3 | ＞995 | ＞12 | ＞1353 | ＞17 | 366-390 | 46-49 |
| 30SH | 1080-1130 | 10.8-11.3 | ＞804 | ＞10.1 | ＞1592 | ＞20 | 223-247 | 28-31 |
| 33SH | 1130-1170 | 10.3-11.7 | ＞844 | ＞10.6 | ＞1592 | ＞20 | 247-271 | 31-34 |
| 35SH | 1170-1220 | 11.7-12.2 | ＞876 | ＞11 | ＞1592 | ＞20 | 263-287 | 33-36 |
| 38SH | 1220-1250 | 12.2-12.5 | ＞907 | ＞11.4 | ＞1592 | ＞20 | 287-310 | 36-39 |
| 40SH | 1240-1280 | 12.5-12.8 | ＞939 | ＞11.8 | ＞1592 | ＞20 | 302-326 | 36-41 |
| 42SH | 1280-1320 | 12.8-13.2 | ＞987 | ＞12.4 | ＞1592 | ＞20 | 318-342 | 40-43 |
| 45SH | 1320-1380 | 13.2-13.8 | ＞1003 | ＞12.6 | ＞1592 | ＞20 | 342-366 | 43-46 |
| 28UH | 1020-1080 | 10.2-10.8 | ＞764 | ＞9.6 | ＞1990 | ＞25 | 207-231 | 26-29 |
| 30UH | 1080-1130 | 10.8-11.3 | ＞812 | ＞10.2 | ＞1990 | ＞25 | 223-247 | 28-31 |
| 33UH | 1130-1170 | 11.3-11.7 | ＞852 | ＞10.7 | ＞1990 | ＞25 | 247-271 | 31-36 |
| 35UH | 1170-1220 | 11.8-12.2 | ＞860 | ＞10.8 | ＞1990 | ＞25 | 263-287 | 33-36 |
| 38UH | 1220-1250 | 12.2-12.5 | ＞876 | ＞11 | ＞1990 | ＞25 | 287-310 | 36-39 |
| 40UH | 1250-1280 | 12.5-12.8 | ＞899 | ＞11.3 | ＞1990 | ＞25 | 302-326 | 31-41 |
| 28EH | 1040-1090 | 10.4-10.9 | ＞780 | ＞9.8 | ＞2388 | ＞30 | 207-231 | 26-29 |
| 30EH | 1080-1130 | 10.8-11.3 | ＞812 | ＞10.2 | ＞2388 | ＞30 | 223-247 | 28-31 |
| 33EH | 1130-1170 | 11.3-11.7 | ＞836 | ＞10.5 | ＞2388 | ＞30 | 247-271 | 31-36 |
| 35EH | 1170-1220 | 11.7-12.2 | ＞876 | ＞11 | ＞2388 | ＞30 | 263-287 | 33-36 |
| 38EH | 1220-1250 | 12.2-12.5 | ＞899 | ＞11.3 | ＞2388 | ＞30 | 287-310 | 36-39 |
| 28AH | 1040-1090 | 10.4-10.9 | ＞787 | ＞9.9 | ＞2642 | ＞33 | 207-231 | 26-29 |
| 30AH | 1080-1130 | 10.8-11.3 | ＞819 | ＞10.3 | ＞2642 | ＞33 | 223-247 | 28-31 |
| 38AH | 1130-1170 | 11.3-11.7 | ＞843 | ＞10.6 | ＞2642 | ＞33 | 247-271 | 31-34 |
High quality - Neodymium block countersunk magnets with a three-layer electroplating, available for rust resistant and providing a smooth finish which greatly increases the longevity of the magnets.
Easy To Use - Rectangular countersunk magnets use the screws to install the magnets on the surface of the object or fix it on the surface of the metal object directly.
Multipurpose Magnets
The heavy duty countersunk neodymium magnets are used to hold different kinds of tools in your workplace, warehouse, garage and shelves, great to use them to latch cabinet doors, hang signs, and mount a of other objects in the home, shop, or office.
Packing&Shipping
20 x 3mm with 5mm Hole neodymium magnets are large use: key, iron products, etc. adsorption and tool storage, manual DIY, refrigerator stick DIY, wardrobe door suction, locker suction, white board magnet
Read More
Countersunk hole magnets can be used for home, office, garage, studio, educational projects. Adsorption and storage of keys, iron products, etc., handmade diy, refrigerator sticker diy, closet door suction, locker suction, whiteboard magnet, etc.
Read More
Neodymium Countersunk Magnet is a popular type of neodymium disc/block magnet that has a countersunk hole to fit a screw perfectly.
Read More
Neodymium countersunk magnets will provide more convenience for home and work, simplifying your life. such as daily hanging, lifting and fastening objects.
Read More
Countersunk hole neodymium magnet suitable for bedroom, bathroom, living room, desktop and travel storage use, practical accessory.
Read More
Neodymium bar magnet with countersunk can be used as a cabine magnet, countersunk hole for fixing
Read More
Disc magnets with countersunk hole perfect for card making, crafting solutions and model making. Organize your kitchen, tools, jewelry, cosmetics, office, school, classroom.
Read More
These strong countersunk magnets can be used for a wide range of applications including door closures and tool hangers.
