Disc Neodymium Magnets

1.26 Inch X 1/8 Inch Strong Suction Rare Earth Thin Disc NdFeB Magnets

1.26 Inch X 1/8 Inch Strong Suction Rare Earth Thin Disc NdFeB Magnets

Neodymium disc magnets are very popular for a range of applications that include wind generation, electric motor.

  • Color :

    Silver
  • Size :

    1.26 inch x 1/8 inch(32x3mm)
  • Order(MOQ) :

    10pcs
  • Coating :

    NiCuNi
  • Lead Time :

    3-15days
  • Payment :

    Paypal/TT/Credit Card

1.26 Inch X 1/8 Inch Strong Suction Rare Earth Thin Disc NdFeB Magnets

Product Description

Dimensions: 1.26 inch x 1/8 inch (32x3mm)

Tolerances: ±0.004" x ±0.004"

Plating/Coating: Ni+Cu+Ni 3 layer plated

Magnetization Direction: Axially magnetized

Max Operating Temp: 176ºF (80ºC)



Specification


Neodymium Br Hcb Hcj (Bh)max Tw
Grade mT kGs kA/m kOe kA/m kOe kJ/m3 MGOe
N35 1170-1220 11.7-12.2 868 10.9 955 12 263-287 33-36 80
N38 1220-1250 12.2-12.5 899 11.3 955 12 287-310 38-39 80
N40 1250-1280 12.5-12.8 907 11.4 955 12 302-326 38-41 80
N42 1280-1320 12.8-13.2 915 11.5 955 12 318-342 40-43 80
N48 1380-1420 13.8-14.2 923 11.6 955 12 366-390 46-49 80
N50 1400-1450 14.0-14.5 796 10 876 11 382-406 48-49 80
N52 1430-1480 14.3-14.8 796 10 876 11 398-422 50-53 80
35M 1170-1220 11.7-12.2 868 10.9 1114 14 263-297 33-36 100
38M 1220-1250 12.2-12.5 899 11.3 1114 14 297-310 36-39 100
40M 1250-1280 12.5-12.8 923 11.6 1114 14 302-326 38-41 100
42M 1280-1320 12.8-13.2 955 12 1114 14 318-342 40-43 100
48M 1360-1430 13.6-14.3 1027 12.9 1114 14 366-390 46-49 100
50M 1400-1450 14.0-14.5 1033 13 1114 14 382-406 48-51 100
33H 1130-1170 11.3-11.7 836 10.5 1353 17 247-271 31-34 120
35H 1170-1220 11.7-12.2 868 10.9 1353 17 263-287 33-36 120
38H 1220-1250 12.2-12.5 899 11.3 1353 17 287-310 36-39 120
40H 1250-1280 12.5-12.8 923 11.6 1353 17 302-326 38-41 120
42H 1280-1320 12.8-13.2 955 12 1353 17 318-342 40-43 120
45H 1300-1360 13-13.6 963 12.1 1353 17 326-358 43-46 120
48H 1370-1430 13.7-14.3 995 12 1353 17 366-390 46-49 120
30SH 1080-1130 10.8-11.3 804 10.1 1592 20 223-247 28-31 150
33SH 1130-1170 10.3-11.7 844 10.6 1592 20 247-271 31-34 150
35SH 1170-1220 11.7-12.2 876 11 1592 20 263-287 33-36 150
38SH 1220-1250 12.2-12.5 907 11.4 1592 20 287-310 36-39 150
40SH 1240-1280 12.5-12.8 939 11.8 1592 20 302-326 36-41 150
42SH 1280-1320 12.8-13.2 987 12.4 1592 20 318-342 40-43 150
45SH 1320-1380 13.2-13.8 1003 12.6 1592 20 342-366 43-46 150
28UH 1020-1080 10.2-10.8 764 9.6 1990 25 207-231 26-29 180
30UH 1080-1130 10.8-11.3 812 10.2 1990 25 223-247 28-31 180
33UH 1130-1170 11.3-11.7 852 10.7 1990 25 247-271 31-36 180
35UH 1170-1220 11.8-12.2 860 10.8 1990 25 263-287 33-36 180
38UH 1220-1250 12.2-12.5 876 11 1990 25 287-310 36-39 180
40UH 1250-1280 12.5-12.8 899 11.3 1990 25 302-326 31-41 180
28EH 1040-1090 10.4-10.9 780 9.8 2388 30 207-231 26-29 200
30EH 1080-1130 10.8-11.3 812 10.2 2388 30 223-247 28-31 200
33EH 1130-1170 11.3-11.7 836 10.5 2388 30 247-271 31-36 200
35EH 1170-1220 11.7-12.2 876 11 2388 30 263-287 33-36 200
38EH 1220-1250 12.2-12.5 899 11.3 2388 30 287-310 36-39 200
28AH 1040-1090 10.4-10.9 787 9.9 2642 33 207-231 26-29 230
30AH 1080-1130 10.8-11.3 819 10.3 2642 33 223-247 28-31 230
38AH 1130-1170 11.3-11.7 843 10.6 2642 33 247-271 31-34 230

Magnetization Direction

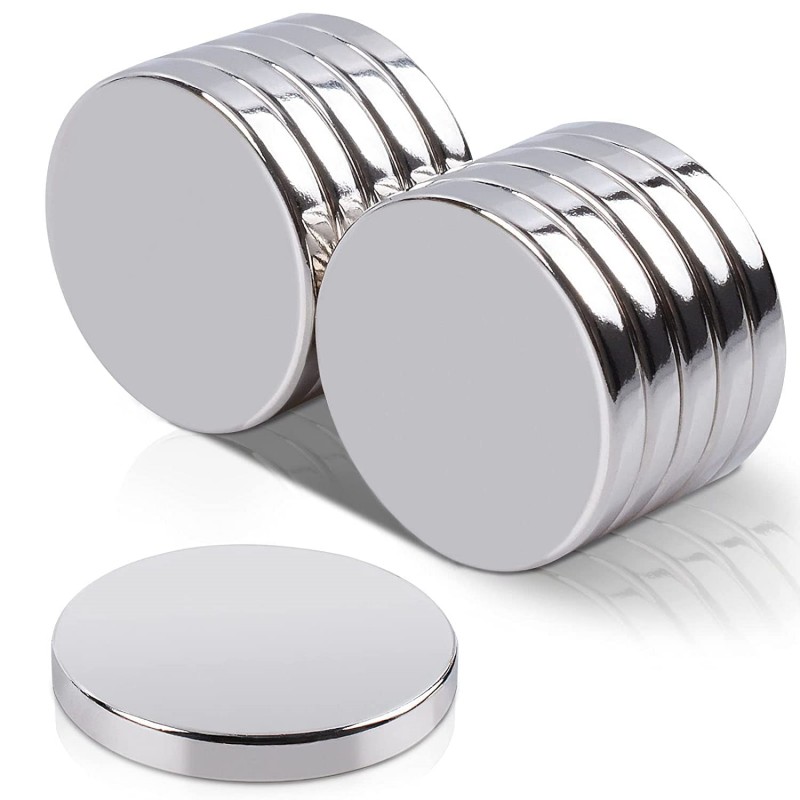

n52 strong disc rare earth magnet
1.26 Inch X 1/8 Inch Strong Suction Rare Earth Thin Disc NdFeB Magnets

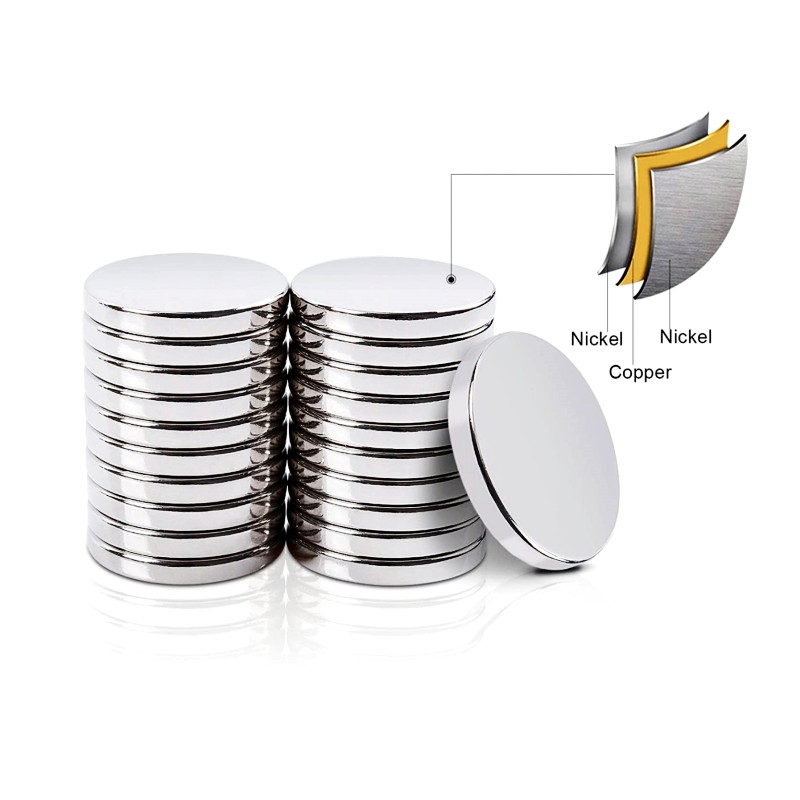

This big size disc magnet made of a grade N52 neodymium magnet alloy, plated in a nickel-copper-nickel triple layers for a shiny corrosion resistant finish. It is magnetized through the thickness so the N and S poles are on the flat surfaces.





competitive price neodymium disc magnet

Round shape neodymium magnets are an intrinsic part of such items as transformers, electric motors, amplifiers and many other types of industrial equipment.



Packing&Shipping

permanent disc large magnet

rare earth neodymium magnet manufacturer

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
