Samarium Cobalt Magnets

High Temperature Resistance Round Block Samarium Cobalt Magnet

High Temperature Resistance Round Block Samarium Cobalt Magnet

Samarium cobalt has high magnetic strength, excellent thermal stability, and corrosion resistance. Used for electric motors, sensors, aerospace and defense applications.

  • Size :

    custom
  • Lead Time :

    3-15days
  • Payment :

    Paypal/ TT/Credit Card

High Temperature Resistance Round Block Samarium Cobalt Magnet

Product Description



High Temperature Resistance Round Block Samarium Cobalt Magnet

Samarium cobalt magnets are made of alloys of Samarium and Cobalt with small amounts of other elements such as iron, copper, and zirconium. Samarium and cobalt are both rare earth elements that can be combined to make powerful permanent magnets. Because of their high inherent Coercivity, they have high anti demagnetism, which means that they can maintain their magnetism even when exposed to high temperature, radiation or strong magnetic field.



permanent smco magnets for motor

custom Smco magnets are used in various industrial applications, including electric motors, sensors, aerospace and defense applications, as well as medical equipment and wind turbines.



Specification



Series Grade Br Hcb Hcj BHmax Tc
TW
T kGs kA/m kOe kA/m kOe kJ/m3 MGOe
SmCo 1:5 66800 SG 127/119 0.8 8 557 7 1194 15 127-143 16-18 750 250
66801 SG 143/119 0.85 8.5 621 7.8 1194 15 143-159 18-20
66802 SG 143/160 0.85 8.5 621 7.8 1592 20 143-159 18-20
66803 SG 160/119 0.9 9 637 8 1194 15 159-175 20-22
66804 SG 160/160 0.9 9 637 8 1592 20 159-175 20-22
66805 SG 175/119 0.95 9.5 676 8.5 1194 15 175-191 22-24
SmCo 2:17 60811 SG160/200 0.9 9 637 8 1990 25 159±16 20±2 800 350
60812 SG 175/160 0.95 9.5 653 8.2 1592 20 175±16 22±2 300
60813 SG 175/200 0.95 9.5 653 8.2 1990 25 175±16 22±2 350
60814 SG 191/160 1 10 676 8.5 1592 20 191±16 24±2 300
60815 SG 191/200 1 10 676 8.5 1990 25 191±16 24±2 350
60816 SG 207/160 1.02 10.2 716 9 1592 20 207±16 26±2 300
60817 SG 207/200 1.02 10.2 716 9 1990 25 207±16 26±2 350
60818 SG 223/120 1.06 10.6 763 9.6 1194 15 223±16 28±2 300
60819 SG 238/72 1.1 11 560 7 716 9 238±16 30±2 250



Packing&Shipping

600c centigrade smco magnet

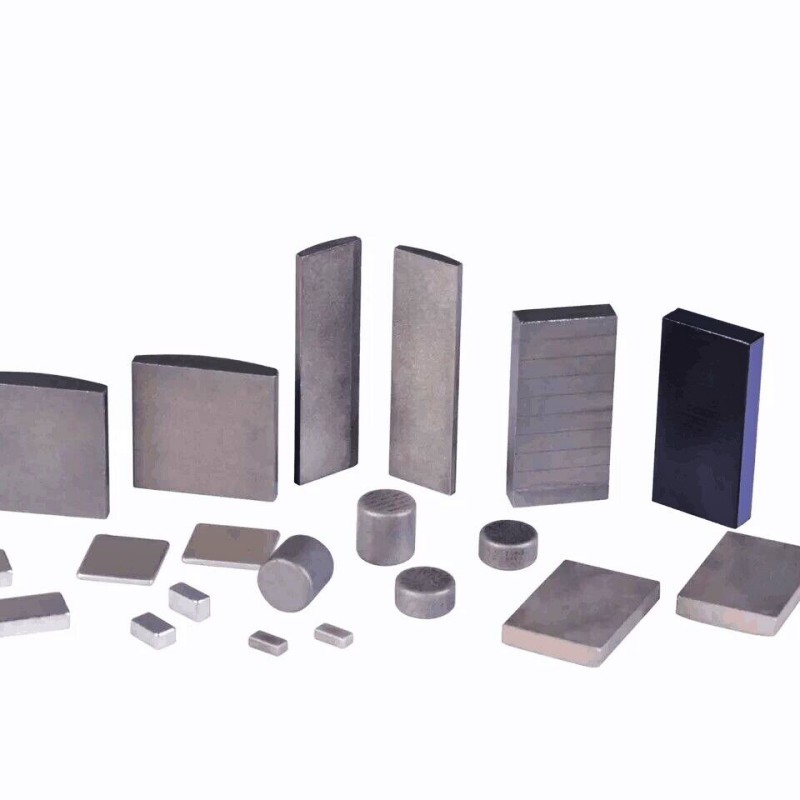

custom shape smco magnets
