Each magnet has a sticky side. Just peel off the sticker and stick the magnet to the desired surface.
Size :
40x10x5mmColor :
SilverOrder(MOQ) :
100pcsCoating :
NiCuNiLead Time :
3-15daysPayment :
Paypal/ TT/Credit CardPremium Self Adhesive N52 Rectangular Block Neodymium Magnets
Product Description

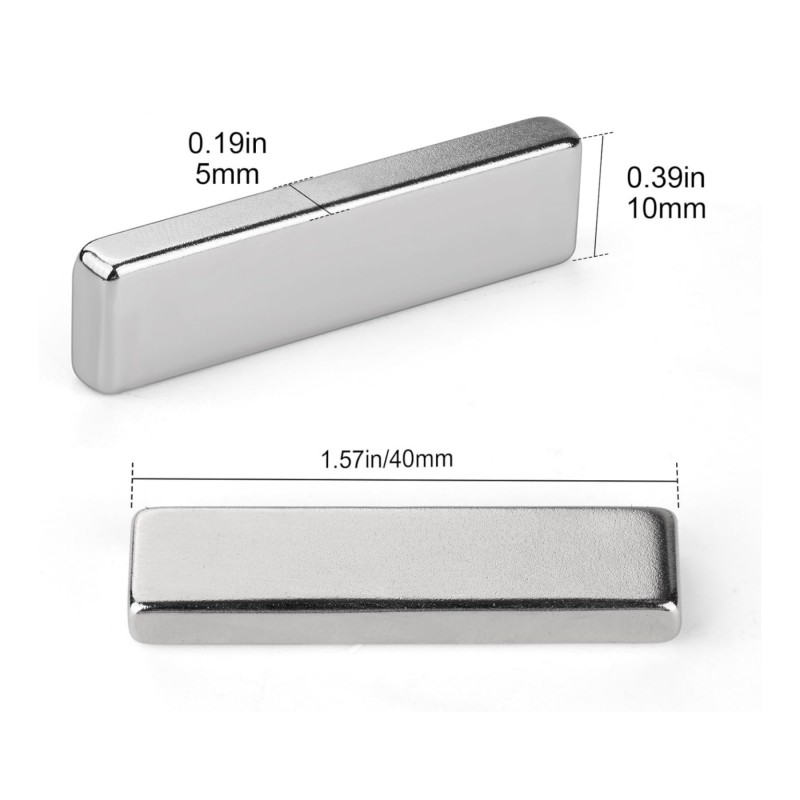

Dimensions: 40x10x5mm
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Max Operating Temp: 176ºF (80ºC)
Specification
| Neodymium | Br | Hcb | Hcj | (Bh)max | Tw | ||||
| Grade | mT | kGs | kA/m | kOe | kA/m | kOe | kJ/m3 | MGOe | ℃ |
| N35 | 1170-1220 | 11.7-12.2 | ＞868 | ＞10.9 | ＞955 | ＞12 | 263-287 | 33-36 | ＜80 |
| N38 | 1220-1250 | 12.2-12.5 | ＞899 | ＞11.3 | ＞955 | ＞12 | 287-310 | 38-39 | ＜80 |
| N40 | 1250-1280 | 12.5-12.8 | ＞907 | ＞11.4 | ＞955 | ＞12 | 302-326 | 38-41 | ＜80 |
| N42 | 1280-1320 | 12.8-13.2 | ＞915 | ＞11.5 | ＞955 | ＞12 | 318-342 | 40-43 | ＜80 |
| N45 | 1330-1370 | 13.3-13.7 | ＞915 | ＞11.5 | ＞955 | ＞12 | 342-367 | 41-44 | ＜80 |
| N48 | 1380-1420 | 13.8-14.2 | ＞923 | ＞11.6 | ＞955 | ＞12 | 366-390 | 46-49 | ＜80 |
| N50 | 1400-1450 | 14.0-14.5 | ＞796 | ＞10 | ＞876 | ＞11 | 382-406 | 48-49 | ＜80 |
| N52 | 1430-1480 | 14.3-14.8 | ＞796 | ＞10 | ＞876 | ＞11 | 398-422 | 50-53 | ＜80 |
| 35M | 1170-1220 | 11.7-12.2 | ＞868 | ＞10.9 | ＞1114 | ＞14 | 263-297 | 33-36 | ＜100 |
| 38M | 1220-1250 | 12.2-12.5 | ＞899 | ＞11.3 | ＞1114 | ＞14 | 297-310 | 36-39 | ＜100 |
| 40M | 1250-1280 | 12.5-12.8 | ＞923 | ＞11.6 | ＞1114 | ＞14 | 302-326 | 38-41 | ＜100 |
| 42M | 1280-1320 | 12.8-13.2 | ＞955 | ＞12 | ＞1114 | ＞14 | 318-342 | 40-43 | ＜100 |
| 48M | 1360-1430 | 13.6-14.3 | ＞1027 | ＞12.9 | ＞1114 | ＞14 | 366-390 | 46-49 | ＜100 |
| 50M | 1400-1450 | 14.0-14.5 | ＞1033 | ＞13 | ＞1114 | ＞14 | 382-406 | 48-51 | ＜100 |
| 33H | 1130-1170 | 11.3-11.7 | ＞836 | ＞10.5 | ＞1353 | ＞17 | 247-271 | 31-34 | ＜120 |
| 35H | 1170-1220 | 11.7-12.2 | ＞868 | ＞10.9 | ＞1353 | ＞17 | 263-287 | 33-36 | ＜120 |
| 38H | 1220-1250 | 12.2-12.5 | ＞899 | ＞11.3 | ＞1353 | ＞17 | 287-310 | 36-39 | ＜120 |
| 40H | 1250-1280 | 12.5-12.8 | ＞923 | ＞11.6 | ＞1353 | ＞17 | 302-326 | 38-41 | ＜120 |
| 42H | 1280-1320 | 12.8-13.2 | ＞955 | ＞12 | ＞1353 | ＞17 | 318-342 | 40-43 | ＜120 |
| 45H | 1300-1360 | 13-13.6 | ＞963 | ＞12.1 | ＞1353 | ＞17 | 326-358 | 43-46 | ＜120 |
| 48H | 1370-1430 | 13.7-14.3 | ＞995 | ＞12 | ＞1353 | ＞17 | 366-390 | 46-49 | ＜120 |
| 30SH | 1080-1130 | 10.8-11.3 | ＞804 | ＞10.1 | ＞1592 | ＞20 | 223-247 | 28-31 | ＜150 |
| 33SH | 1130-1170 | 10.3-11.7 | ＞844 | ＞10.6 | ＞1592 | ＞20 | 247-271 | 31-34 | ＜150 |
| 35SH | 1170-1220 | 11.7-12.2 | ＞876 | ＞11 | ＞1592 | ＞20 | 263-287 | 33-36 | ＜150 |
| 38SH | 1220-1250 | 12.2-12.5 | ＞907 | ＞11.4 | ＞1592 | ＞20 | 287-310 | 36-39 | ＜150 |
| 40SH | 1240-1280 | 12.5-12.8 | ＞939 | ＞11.8 | ＞1592 | ＞20 | 302-326 | 36-41 | ＜150 |
| 42SH | 1280-1320 | 12.8-13.2 | ＞987 | ＞12.4 | ＞1592 | ＞20 | 318-342 | 40-43 | ＜150 |
| 45SH | 1320-1380 | 13.2-13.8 | ＞1003 | ＞12.6 | ＞1592 | ＞20 | 342-366 | 43-46 | ＜150 |
| 28UH | 1020-1080 | 10.2-10.8 | ＞764 | ＞9.6 | ＞1990 | ＞25 | 207-231 | 26-29 | ＜180 |
| 30UH | 1080-1130 | 10.8-11.3 | ＞812 | ＞10.2 | ＞1990 | ＞25 | 223-247 | 28-31 | ＜180 |
| 33UH | 1130-1170 | 11.3-11.7 | ＞852 | ＞10.7 | ＞1990 | ＞25 | 247-271 | 31-36 | ＜180 |
| 35UH | 1170-1220 | 11.8-12.2 | ＞860 | ＞10.8 | ＞1990 | ＞25 | 263-287 | 33-36 | ＜180 |
| 38UH | 1220-1250 | 12.2-12.5 | ＞876 | ＞11 | ＞1990 | ＞25 | 287-310 | 36-39 | ＜180 |
| 40UH | 1250-1280 | 12.5-12.8 | ＞899 | ＞11.3 | ＞1990 | ＞25 | 302-326 | 31-41 | ＜180 |
| 28EH | 1040-1090 | 10.4-10.9 | ＞780 | ＞9.8 | ＞2388 | ＞30 | 207-231 | 26-29 | ＜200 |
| 30EH | 1080-1130 | 10.8-11.3 | ＞812 | ＞10.2 | ＞2388 | ＞30 | 223-247 | 28-31 | ＜200 |
| 33EH | 1130-1170 | 11.3-11.7 | ＞836 | ＞10.5 | ＞2388 | ＞30 | 247-271 | 31-36 | ＜200 |
| 35EH | 1170-1220 | 11.7-12.2 | ＞876 | ＞11 | ＞2388 | ＞30 | 263-287 | 33-36 | ＜200 |
| 38EH | 1220-1250 | 12.2-12.5 | ＞899 | ＞11.3 | ＞2388 | ＞30 | 287-310 | 36-39 | ＜200 |
| 28AH | 1040-1090 | 10.4-10.9 | ＞787 | ＞9.9 | ＞2642 | ＞33 | 207-231 | 26-29 | ＜230 |
| 30AH | 1080-1130 | 10.8-11.3 | ＞819 | ＞10.3 | ＞2642 | ＞33 | 223-247 | 28-31 | ＜230 |
| 38AH | 1130-1170 | 11.3-11.7 | ＞843 | ＞10.6 | ＞2642 | ＞33 | 247-271 | 31-34 | ＜230 |

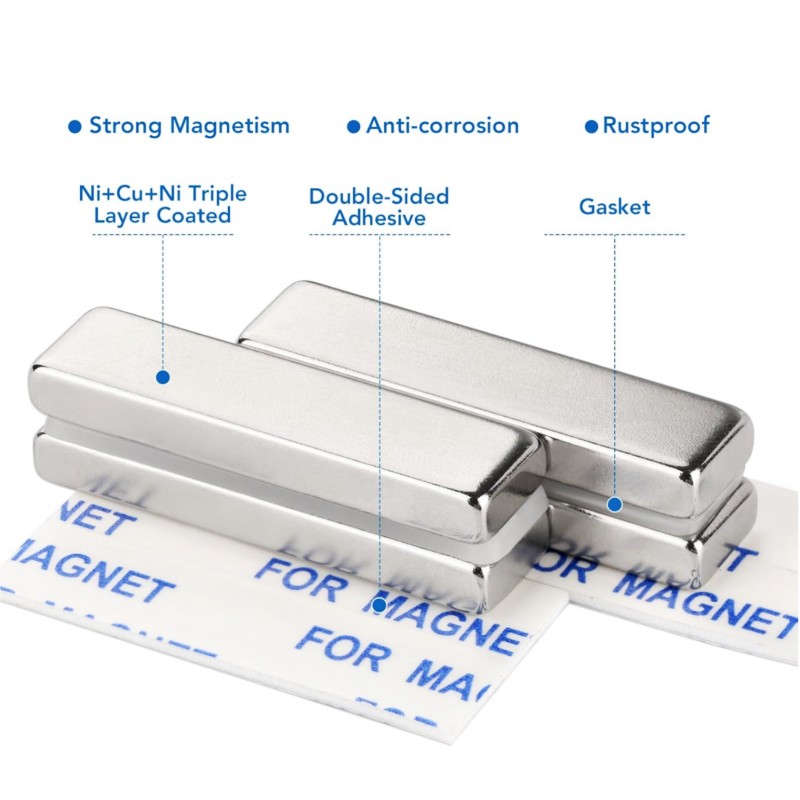

Heavy duty rectangular magnets are made of the strongest magnetic materials, use ni+cu+ni three-layer coating, which provides a shiny and rust resistant protection for the magnets.
Neodymium bar magnets with adhesive perfect for crafting and tool storage of living and office supplies, display precious pictures on refrigerator, complete DIY projects and scientific experiment, and any other occasions your want, they are great helper for your home, office and school.

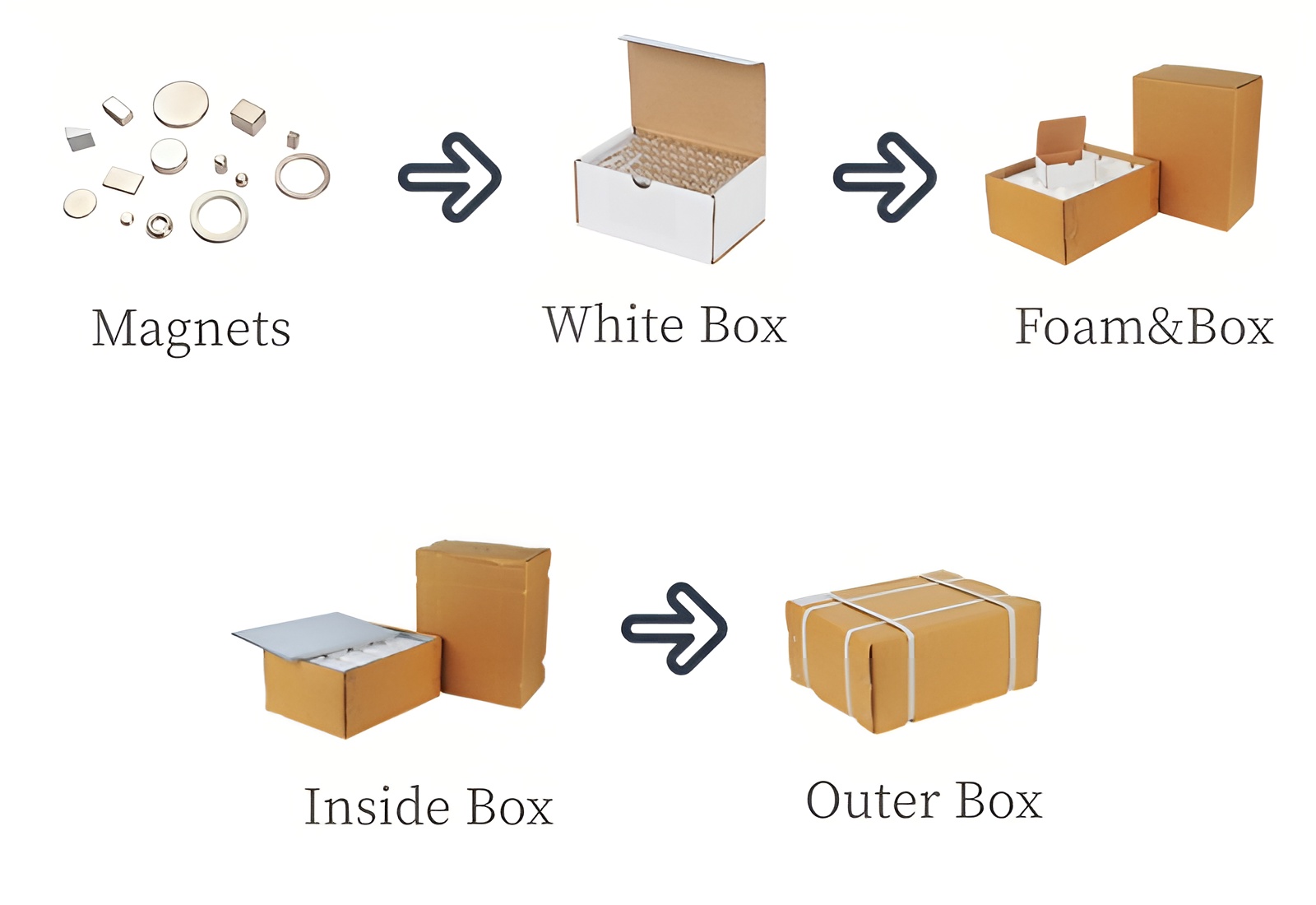

Packing&Shipping
