Use neodymium square magnet for anything, including finding studs in your wall, fastening, lifting, hanging objects, various projects & presentations, education.
Color :
SilverSize :
20x20x3mmOrder(MOQ) :
100pcsCoating :
NiCuNiLead Time :
3-15daysPayment :
Paypal/ TT/Credit CardSuper Strong Neodymium Square Block Magnets 20x20x3mm
Product Description

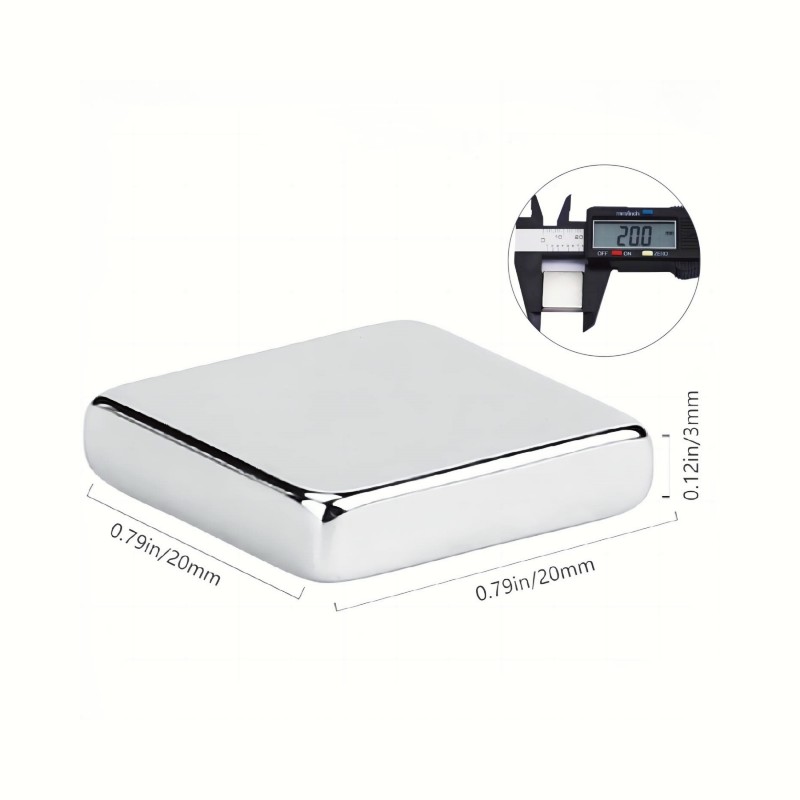

Dimensions: 20x20x3mm
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB

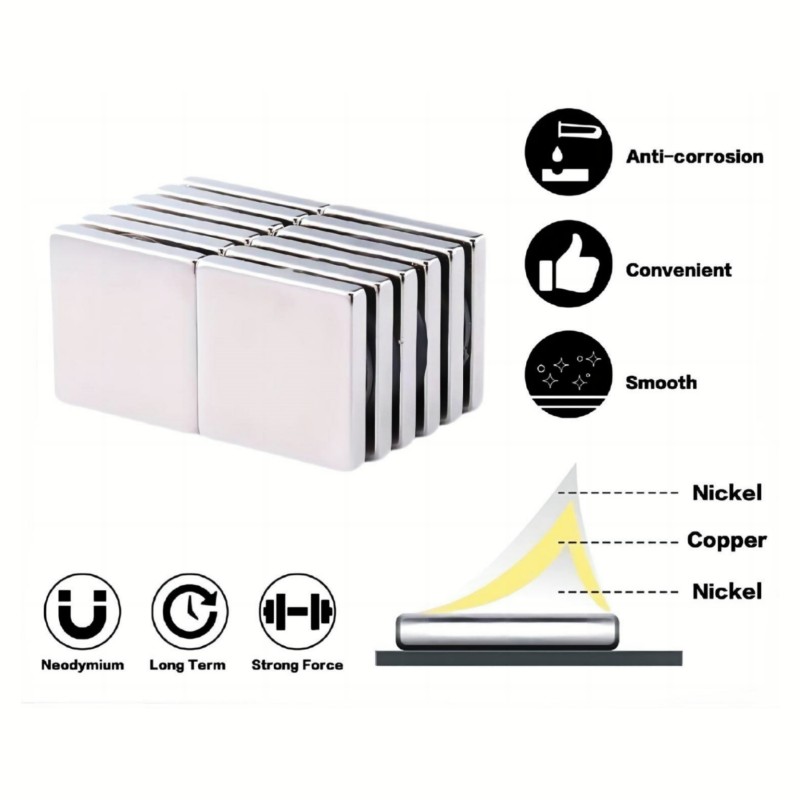

Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Max Operating Temp: 176ºF (80ºC)
Specification
| Neodymium | Br | Hcb | Hcj | (Bh)max | Tw | ||||
| Grade | mT | kGs | kA/m | kOe | kA/m | kOe | kJ/m3 | MGOe | ℃ |
| N35 | 1170-1220 | 11.7-12.2 | ＞868 | ＞10.9 | ＞955 | ＞12 | 263-287 | 33-36 | ＜80 |
| N38 | 1220-1250 | 12.2-12.5 | ＞899 | ＞11.3 | ＞955 | ＞12 | 287-310 | 38-39 | ＜80 |
| N40 | 1250-1280 | 12.5-12.8 | ＞907 | ＞11.4 | ＞955 | ＞12 | 302-326 | 38-41 | ＜80 |
| N42 | 1280-1320 | 12.8-13.2 | ＞915 | ＞11.5 | ＞955 | ＞12 | 318-342 | 40-43 | ＜80 |
| N48 | 1380-1420 | 13.8-14.2 | ＞923 | ＞11.6 | ＞955 | ＞12 | 366-390 | 46-49 | ＜80 |
| N50 | 1400-1450 | 14.0-14.5 | ＞796 | ＞10 | ＞876 | ＞11 | 382-406 | 48-49 | ＜80 |
| N52 | 1430-1480 | 14.3-14.8 | ＞796 | ＞10 | ＞876 | ＞11 | 398-422 | 50-53 | ＜80 |
High Quality - Our sintered NdFeB magnets are made from strong neodymium-iron-boron alloy and have a stylish nickel coating (Ni-Cu-Ni) with an appealing silver surface that doesn't rust or scratch
Scratch Free Technology - 20x20x3mm block neodymium magnet has smooth surface, which can be easily removed without leaving scratches on your refrigerator or office board. Do not worry it might scratch the fridge or your new table anymore.
Multipurpose Magnets
The Nickel coating square magnets use for refrigerator, shower door, work or office, scientific purposes, arts and crafts or school classroom.
Packing&Shipping
These square cube magnets are small, measuring 10x10x10mm (Length* Width *Thickness) and are perfect for craft projects or magnetized models.
